TL;DR
- Axial fans move high air volume at low pressure—best for open-space ventilation and circulation
- Centrifugal blowers build high-pressure airflow for ducted systems, fume extraction, and static resistance
- Polypropylene construction resists acid and caustic attack through its full wall thickness and can last 25+ years, where coated metal lasts 3–5
- Chemical process exhaust usually needs centrifugal blowers in polypropylene, with PVC or FRP for chemistries outside its range

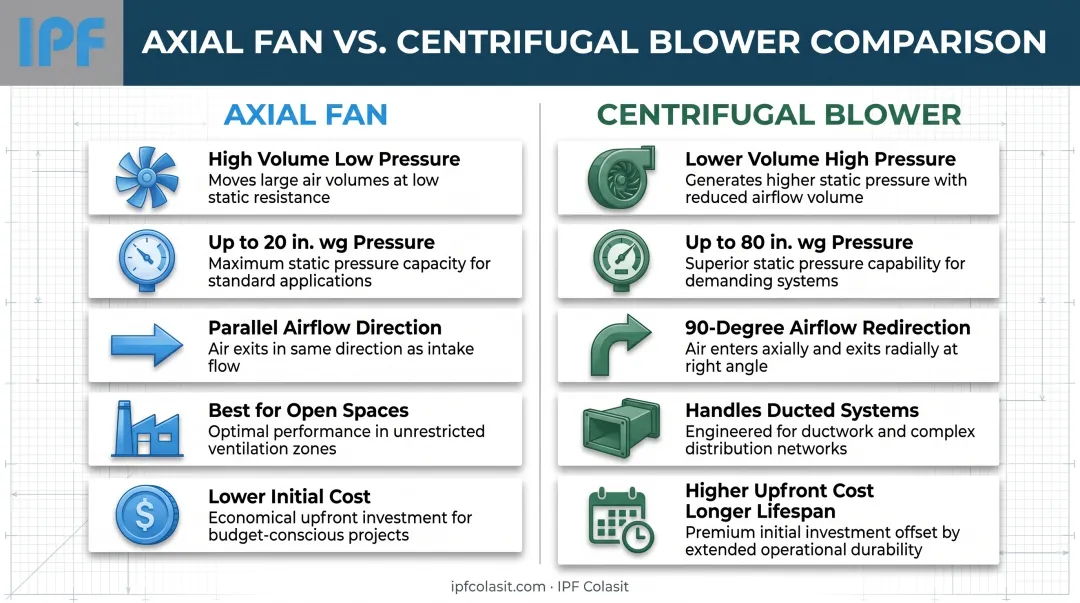

Axial Fan vs Centrifugal Blower: Quick Comparison
Cost
- Axial Fan: Lower initial cost, simpler installation
- Centrifugal Blower: Higher upfront cost, but longer lifespan in harsh environments with proper material selection
Airflow Characteristics
- Axial Fan: High volume, low pressure, parallel airflow direction
- Centrifugal Blower: Lower volume, high pressure, 90-degree airflow redirection
Pressure Capability
- Axial Fan: Best for low-resistance applications (up to ~20 in. wg)
- Centrifugal Blower: Handles high static pressure and system resistance (up to ~80 in. wg for industrial models)
Ideal Applications
- Axial Fan: Warehouse ventilation, general air circulation, heat rejection, cooling towers
- Centrifugal Blower: Fume extraction, ducted exhaust systems, scrubber applications, chemical process ventilation
Material Considerations
- Axial Fan: Typically metal construction; thermoplastic options available for chemical environments
- Centrifugal Blower: Available in polypropylene, the default for acid and caustic fume duty, with PVC and FRP for other chemistries; metal options for general use

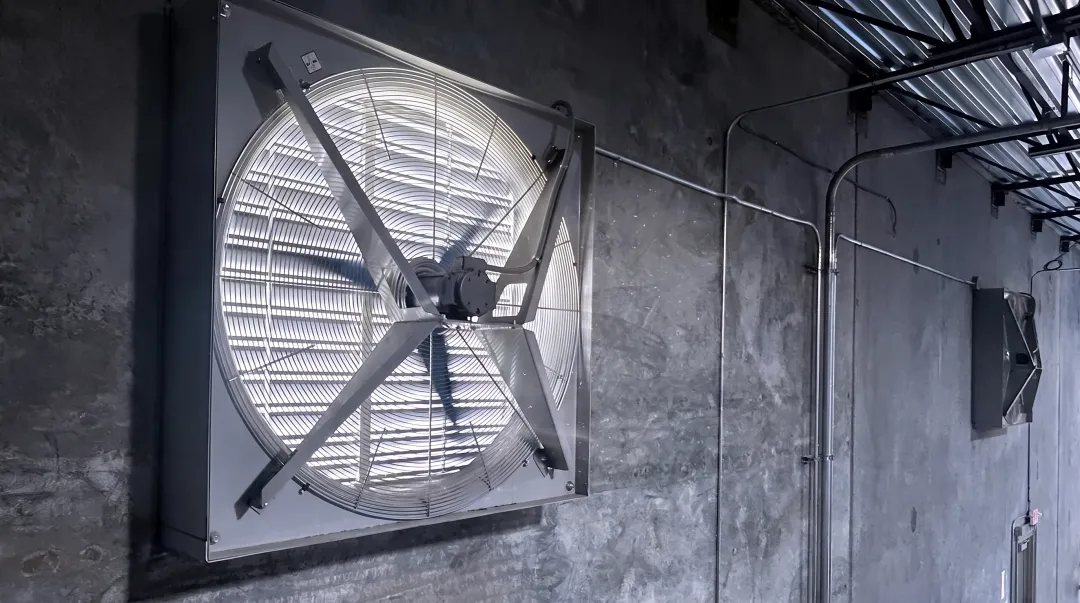

What is an Axial Fan?
Axial fans move air parallel to the fan's axis of rotation, using propeller-style blades to draw air in and expel it in the same direction. According to the DOE Fan Sourcebook, these devices develop pressure through aerodynamic lift, similar to how aircraft propellers work.
Core operational benefits include:
- High airflow volumes – Industrial axial fans can move up to roughly 490,000 CFM in certain configurations
- Energy efficiency – Best suited for low-resistance applications where air moves freely
- Compact footprint – Simpler installation compared to centrifugal designs
Most industrial axial fans use metal construction. Polypropylene and PVC options exist for corrosive gas handling, though they are less common than polypropylene centrifugal designs.
FRP (fiberglass-reinforced plastic) axial fans are also built for chemical environments where corrosion resistance is essential.
Use Cases of Axial Fans in Industrial Settings
Where axial fans fit in chemical facility operations:
- General building ventilation
- Cooling tower applications
- Heat exchanger airflow
- Supplemental air circulation in production areas
Industries where axial fans dominate:
- Large warehouse ventilation
- Tunnel ventilation and smoke extraction
- HVAC systems
- Applications requiring air movement over short distances with minimal ductwork
Limitations in chemical processing:
Axial fans are a weak match for many chemical exhaust setups:
- Struggle with high static pressure from ducted systems, filters, or scrubbers
- Can enter a severe stall region when blade airflow drops too low (per DOE), causing unstable operation
- Lose performance quickly as system resistance rises
- Poor fit for concentrated fume extraction through ductwork or widely varying process conditions
What is a Centrifugal Blower?
Centrifugal blowers use rotating impellers to redirect air at 90 degrees from intake. That centrifugal force generates high-pressure airflow capable of overcoming system resistance.
Air enters the impeller axially, accelerates radially from hub to blade tips, and discharges as kinetic energy converts to static pressure.
Core operational benefits:
- Delivers high static pressure—industrial units handle up to roughly 80 in. wg (20,000 Pa)
- Holds steady airflow in ducted systems as filters load or resistance changes
- Moves particulate-laden and dirty gas streams more effectively than axial fans
- Overcomes losses from filters, scrubbers, and long duct runs

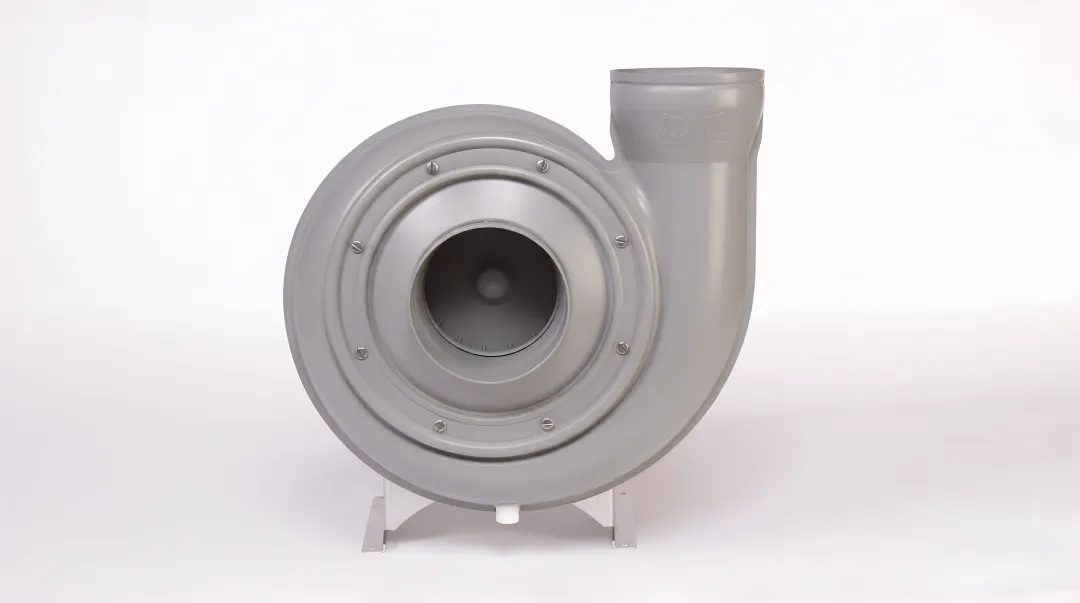

Material advantages for chemical applications:
Polypropylene centrifugal blowers resist corrosion from acids, caustics, and aggressive chemicals, with PVC and FRP available for chemistries and temperatures outside the polypropylene window. Material compatibility still depends on chemical identity, concentration, exposure time, temperature, and related conditions, so selection must match the actual exhaust chemistry.
Use Cases of Centrifugal Blowers in Chemical Facilities
Common applications include:
- Fume hood exhaust and laboratory ventilation
- Acid fume extraction on plating lines
- Scrubber system draft and exhaust
- Wastewater treatment aeration and odor control
- Semiconductor process gas handling
- VOC removal in industrial painting operations
Proper inlet and outlet conditions matter as much as the blower itself. AMCA reports that adverse inlet/outlet flow can cause performance loss, noise, vibration, and premature impeller or bearing failure, so correct selection and installation are essential in demanding chemical service.
Axial vs Centrifugal: What is Better for Chemical Ventilation?
The right choice depends on your application. Axial fans and centrifugal blowers each win in different chemical-ventilation scenarios.
Critical Factors for Comparison in Chemical Environments
Required static pressure:
- Axial fans work best below about 20 in. WC
- Centrifugal blowers handle roughly 20–80 in. WC and beyond
Airflow volume needs:
- Axial fans deliver higher volumes at low resistance
- Centrifugal blowers provide moderate volumes at high resistance
Corrosive gas exposure:
- Both types available in thermoplastic materials
- Centrifugal designs offer wider material options, led by polypropylene, with PVC and FRP alongside it
Ductwork complexity:
- Minimal ductwork favors axial fans
- Complex ducted systems require centrifugal blowers

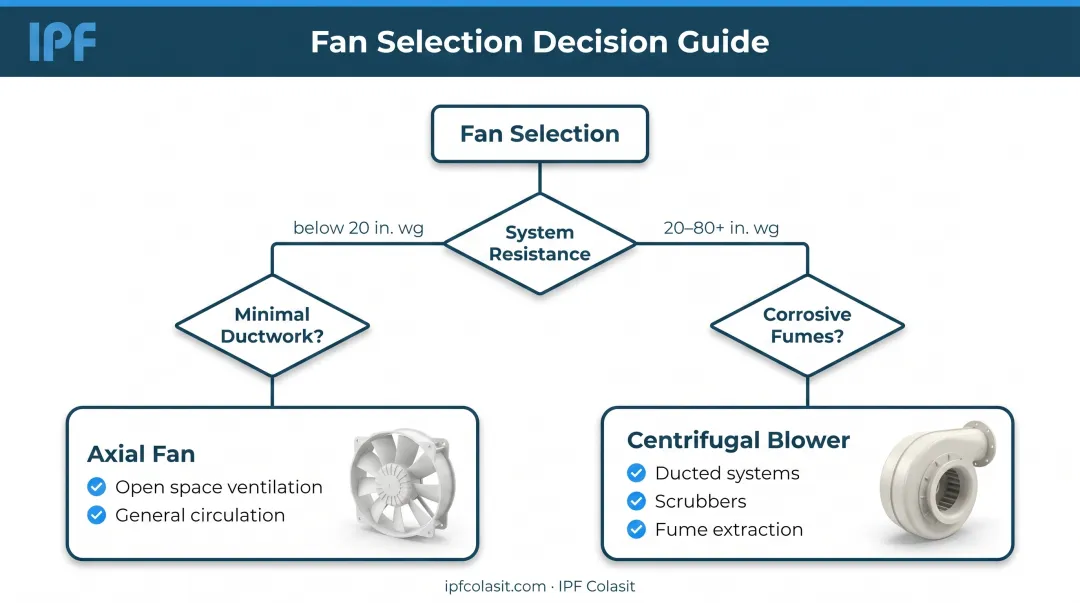

Situational Recommendations
Choose axial fans when:
- You need high-volume general ventilation in open spaces
- Ductwork is minimal or nonexistent
- System resistance is low
- Corrosive gas exposure is limited
Choose centrifugal blowers when:
- Air must move through ducts, scrubbers, or filters
- Scrubber pressure drop reaches 5-25 inches water column
- You're handling corrosive chemical fumes
- Consistent performance is mandatory for safety
Material Selection in Corrosive Environments
In corrosive chemical environments (acids, caustics, chlorine, bromine), polypropylene typically provides far longer service life than coated metal. The reason is structural rather than incremental: corrosion in metal is an electrochemical reaction, and polypropylene has no electrons to surrender to the gas stream. A coating on steel only protects until it is chipped or pinholed, after which acid attacks the bare metal beneath and spreads unseen. A polypropylene wheel and housing are corrosion-resistant through the full wall thickness, with nothing to breach. Material compatibility must be verified against your specific chemicals, concentrations, and operating temperatures.
IPF Colasit builds centrifugal blowers in welded polypropylene as standard, with PVC and FRP where a specific chemistry or temperature calls for them. Customers report 25+ years of service in harsh chemical environments, versus typical 3–5 year replacement cycles for metal fans in the same conditions.
Total Cost of Ownership
That corrosion-driven replacement cycle shows up in total cost. Axial fans may cost less upfront, but repeated metal-fan failures in corrosive service raise lifecycle cost fast. Industrial downtime can reach $2.3M per unproductive hour in manufacturing, so unplanned fan outages are expensive.
Polypropylene centrifugal blowers often cost less per year of service despite a higher purchase price, especially where chemical attack is constant and there is no recoating programme to fund.
Hybrid Scenarios
Some facilities use both types. Axial fans cover general building ventilation; centrifugal blowers handle process exhaust and fume extraction. Matching each fan to the zone keeps performance and cost aligned.

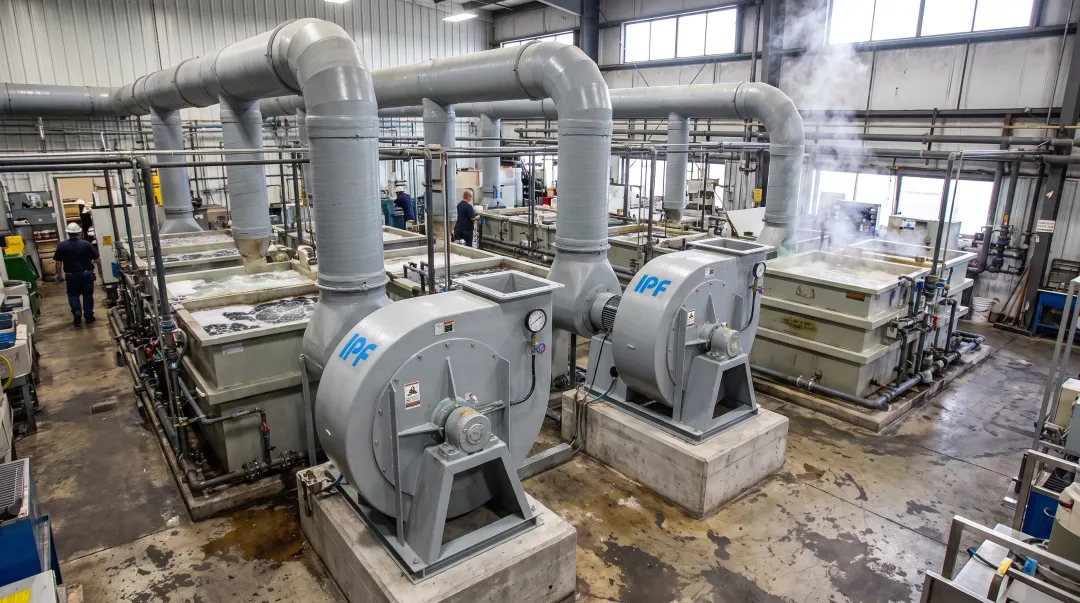

Real World Example: Chemical Plating Facility Fume Extraction
The Challenge:
A chemical plating facility experienced repeated failure of metal centrifugal fans used for acid fume extraction from plating tanks. Fans corroded within 18-24 months despite protective coatings, resulting in:
- Frequent replacement costs
- Production downtime during fan changeouts
- Safety concerns from inadequate ventilation
- Increasing maintenance burden
The Solution:
The facility replaced the failed metal fans with centrifugal blowers built from fiberglass-reinforced plastic (FRP). These units handle corrosive acid fumes such as hydrochloric, sulfuric, and nitric acid vapors in plating process exhaust streams.
Measurable Results:
- 25+ years of continuous operation with only routine maintenance (bearing lubrication, belt replacement)
- Eliminated recurring replacement cycle and associated costs
- 85% reduction in ventilation system lifecycle costs
- Zero production disruptions from fan failures
- Improved worker safety and air quality compliance through consistent ventilation performance
If your facility handles corrosive chemical fumes and metal fans fail early, IPF Colasit supplies polypropylene, PVC, and FRP centrifugal blowers built for harsh chemical environments. Contact us at 1-800-891-3656 or adamc@ipfcolasit.com to discuss your ventilation requirements.
Conclusion
The axial vs. centrifugal choice depends primarily on pressure requirements and system resistance. In chemical processing environments, material selection (thermoplastic vs. metal) becomes equally critical and can determine whether equipment lasts 2 years or 25+ years.
Choosing the right fan type and material:
- Reduces maintenance costs and eliminates unplanned downtime
- Ensures consistent ventilation performance for worker safety
- Lowers total cost of ownership in corrosive chemical applications
- Protects production schedules from equipment failure
Match the choice to your airflow needs, static pressure, ductwork complexity, chemical exposure, and service-life goals. In corrosive gas streams, polypropylene construction is usually the difference between frequent replacements and decades of reliable service. For help sizing an axial or centrifugal unit for a chemical application, IPF Colasit can review the pressure and material tradeoffs for your system.
Frequently Asked Questions
What is the difference between axial and centrifugal fans?
Axial fans move air parallel to the fan shaft and excel at high-volume, low-pressure applications. Centrifugal blowers redirect air at 90 degrees and generate high pressure to overcome system resistance like ductwork, filters, and scrubbers.
Which is better, an axial or centrifugal fan?
Neither is universally better. The right choice depends on your application. Axial fans are better for high-volume general ventilation in open spaces, while centrifugal blowers are better for ducted systems and fume extraction in chemical environments.
What is a centrifugal fan used for?
Centrifugal blowers serve fume hood exhaust, acid vapor extraction, plating line ventilation, scrubber systems, dust collection, and any industrial application requiring air movement through ductwork or against high system resistance.
What is an axial fan used for?
Axial fans handle warehouse and building ventilation, cooling towers, heat exchanger airflow, general air circulation, and any application requiring high air volumes moved over short distances with minimal ductwork.
Are axial fans quieter than centrifugal fans?
Axial fans typically produce higher-frequency noise than comparable centrifugal fans, though the DOE notes this noise is easier to attenuate. Noise levels vary significantly based on fan size, speed, installation, and whether noise-reduction features like inlet silencers or vibration isolation are used.
What is the most efficient type of blower?
Efficiency depends on the application. Axial fans are more energy-efficient for low-pressure, high-volume applications, while backward-curved centrifugal blowers offer the best efficiency (80-90%) for high-pressure ducted systems.
