The 2021 International Mechanical Code splits kitchen hoods into Type I (grease and smoke) and Type II (heat and moisture only), and that classification alone should dictate your fan choice. Get it wrong, and you're looking at motor failure, corrosion damage, and potential code violations.
This article breaks down the real differences between upblast and downblast fans, when to use each, and why material choice — steel versus corrosion-resistant thermoplastic — matters just as much as airflow direction for harsh chemical environments.
Key Takeaways
- Upblast fans discharge air up and off the roof, shielding the motor from grease and corrosive fumes
- Downblast fans push air toward the roof and suit only clean, non-contaminated airstreams
- Never assume motor location from orientation alone; verify drive type and listing for your model
- Material choice (PVC, polypropylene, or FRP vs. steel) is separate from airflow direction
- Match the fan to airstream contents first, then confirm code compliance and materials
Upblast vs Downblast: Quick Comparison
| Factor | Upblast | Downblast |
|---|---|---|
| Airflow Direction | Discharges upward, away from roof | Discharges downward, toward roof |
| Motor Protection | Often positioned out of the airstream | Varies by model: verify, don't assume |
| Grease/Contaminant Handling | Common choice for grease-laden exhaust | Intended for relatively clean air |
| Ideal Applications | Commercial kitchens, chemical exhaust, plating lines | General ventilation, warehouses, offices |
| Material Options | Steel or corrosion-resistant thermoplastic (PVC, PP, FRP) | Typically steel |
Motor placement is easy to oversimplify: "upblast means sealed motor" and "downblast means exposed motor" are often true, but not universal. Drive type (belt vs. direct) affects motor location independently of discharge orientation.
Always check the specific product documentation rather than relying on the fan's general category.
What is an Upblast Exhaust Fan?
An upblast exhaust fan is roof-mounted and draws contaminated air up through ductwork, discharging it vertically, up and away from the building. This design keeps the motor better shielded from heat, grease, and corrosive fumes moving through the airstream, which typically means less frequent cleaning and longer equipment life.
Two main drive types exist:
- Direct drive: simpler mechanically, fewer moving parts to maintain
- Belt drive: allows speed adjustment and tends to run quieter
For restaurant exhaust specifically, the listing matters. UL 705 Supplement SC covers roof or wall-mounted power ventilators used with grease-producing appliances, including high-temperature and grease-flare-up testing requirements.
Installation must also follow NFPA 96. If you're specifying a kitchen exhaust fan, confirm the exact UL 705 Supplement SC listing rather than the outdated "UL 762" designation some older documents still reference.
Why Material Matters as Much as Orientation
Material choice can undo the benefits of orientation. A standard steel upblast fan handling acid or caustic fumes from a plating line or chemical process will corrode, often within a few years, regardless of how well the orientation protects the motor from grease.

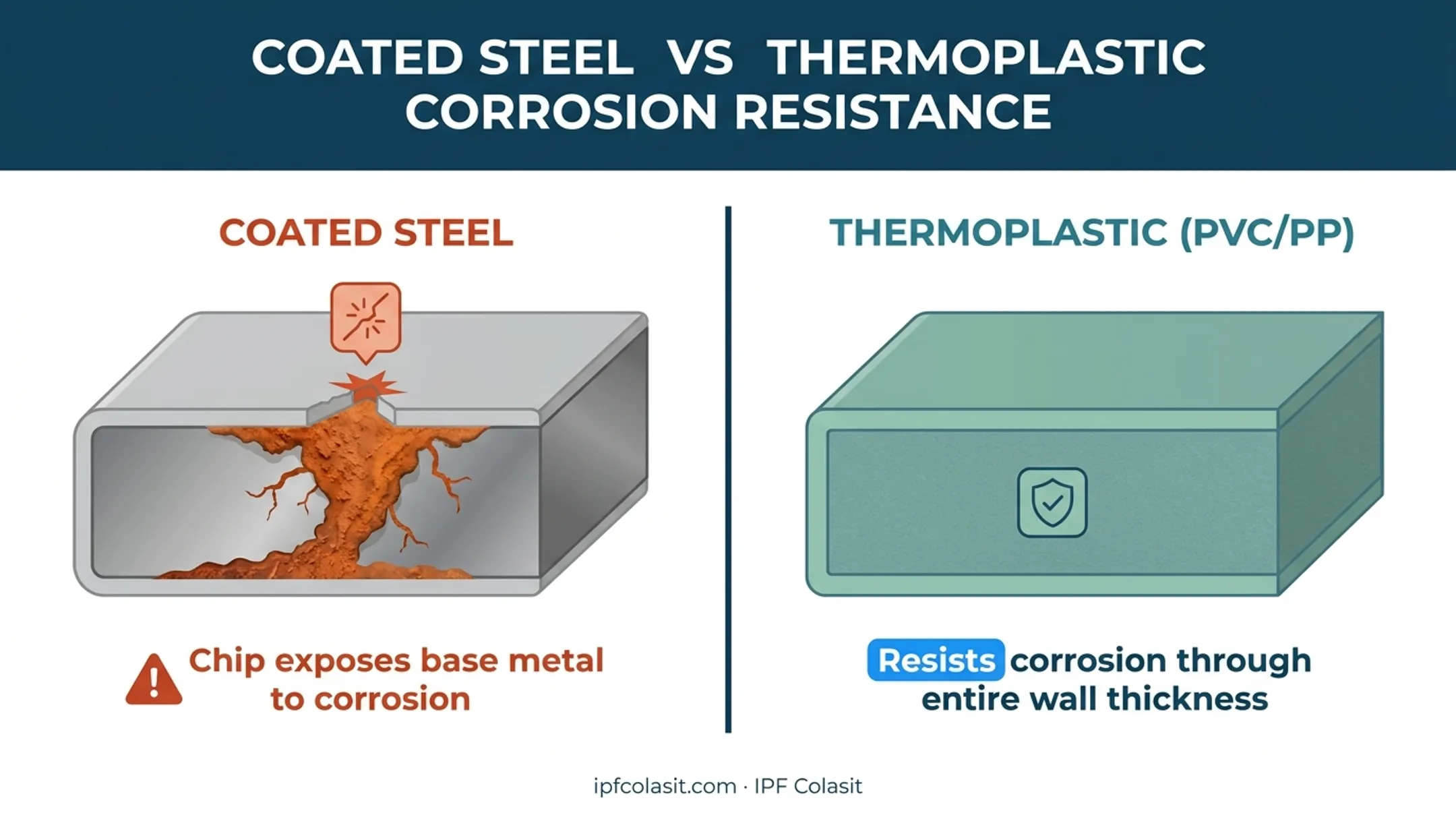

Polypropylene and PVC construction resists acid and caustic attack through the entire wall thickness, not just a surface coating. That distinction is critical: a coating fails once it's chipped or develops a pinhole, and corrosion spreads underneath, unseen, until the housing fails. Thermoplastic doesn't have that vulnerability.
Use Cases of Upblast Fans
Upblast fans show up most commonly in restaurant and commercial kitchen hoods, but the same design logic applies well beyond food service:
- Chemical processing plants exhausting acid or caustic vapor
- Plating and metal finishing lines with corrosive fume streams
- Semiconductor manufacturing requiring aggressive chemical exhaust
- Municipal wastewater treatment facilities handling corrosive gas streams
IPF Colasit's polypropylene and PVC blower lines, including the CMV belt-drive and CDD direct-drive series, are built specifically for these harsh, chemical-laden exhaust applications. Customers have reported 25 years or more of reliable service from these units, and belt-drive bearings are rated for 100,000 hours without needing to be greased.
What is a Downblast Exhaust Fan?
A downblast exhaust fan pulls air up through the ductwork, then discharges it back down toward the roof or fan base. Unlike upblast designs, the discharge point sits close to the roof surface rather than venting well above it.
The core appeal is simplicity. Downblast fans generally cost less upfront and work well for clean-air ventilation where the exhaust carries neither grease nor corrosive chemicals. Many use a mushroom-style housing that shields internal components from rain and snow. That housing does not protect against contaminants already inside the airstream.
Important clarification: downblast doesn't automatically mean the motor sits exposed in the airstream. Drive type varies by manufacturer and model. Don't assume — check the spec sheet.
Use Cases of Downblast Fans
Downblast fans fit best where the exhaust stream is genuinely clean:
- General building ventilation in offices and retail spaces
- Warehouse air exchange without grease or chemical contamination
- Non-cooking exhaust applications, such as removing stale air or moisture
- Light commercial buildings with straightforward HVAC needs
Manufacturers do not publish lifespan data for downblast fans on grease or corrosive duty because they do not recommend that use case. Wheels that exhaust dirty or grease-laden air need frequent cleaning to stay safe, and corrosive chemical streams accelerate wear further.
Use a downblast fan only for clean airstreams. Grease-laden or corrosive exhaust belongs on a design that discharges up and away from the roof—not back down toward it.
Upblast vs Downblast: What is Better?
Neither fan type is universally "better." The right choice depends entirely on what's moving through your exhaust stream.

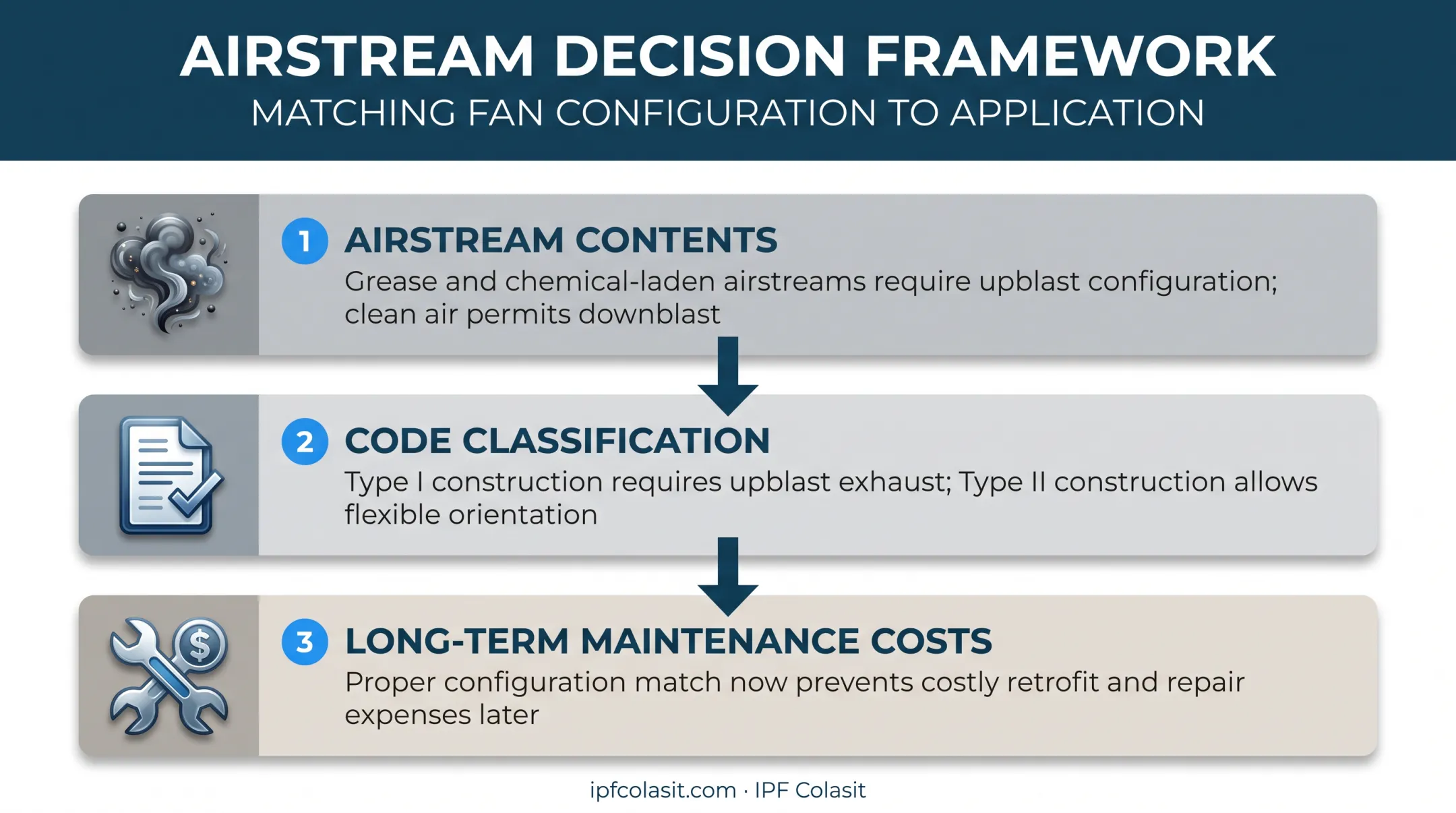

Base your decision on:
- Airstream contents: grease, chemical fumes, and moisture point toward upblast; clean or stale air can use downblast
- Code classification: Type I hoods (grease/smoke) require upblast-style equipment with proper listings; Type II hoods (heat/moisture only) have more flexibility
- Long-term maintenance costs: match the fan to the airstream now, or budget for more frequent service and earlier replacement later
For harsh chemical environments, don't stop at orientation. Pair an upblast design with corrosion-resistant thermoplastic construction instead of standard steel. That combination fixes discharge direction and material attack in one choice.
Steel upblast fans still corrode in acid or caustic service. Orientation alone does not solve that.
Real World Example: Chemical Facility Ventilation Upgrade

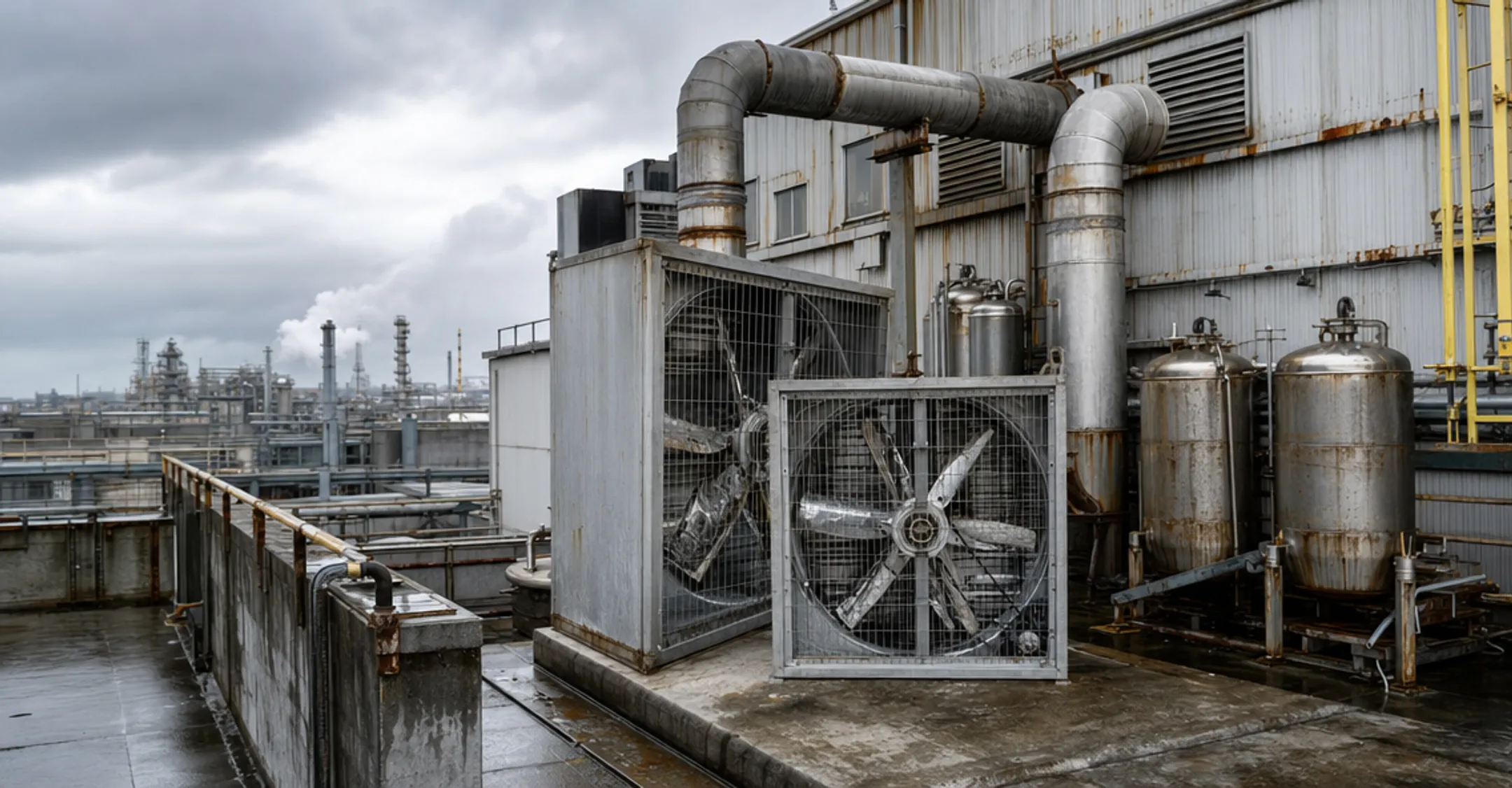

Consider a scenario common in plating and chemical processing plants. A facility running steel exhaust fans over an acid-etching or caustic-cleaning line starts seeing housing and motor corrosion within a few years of installation.

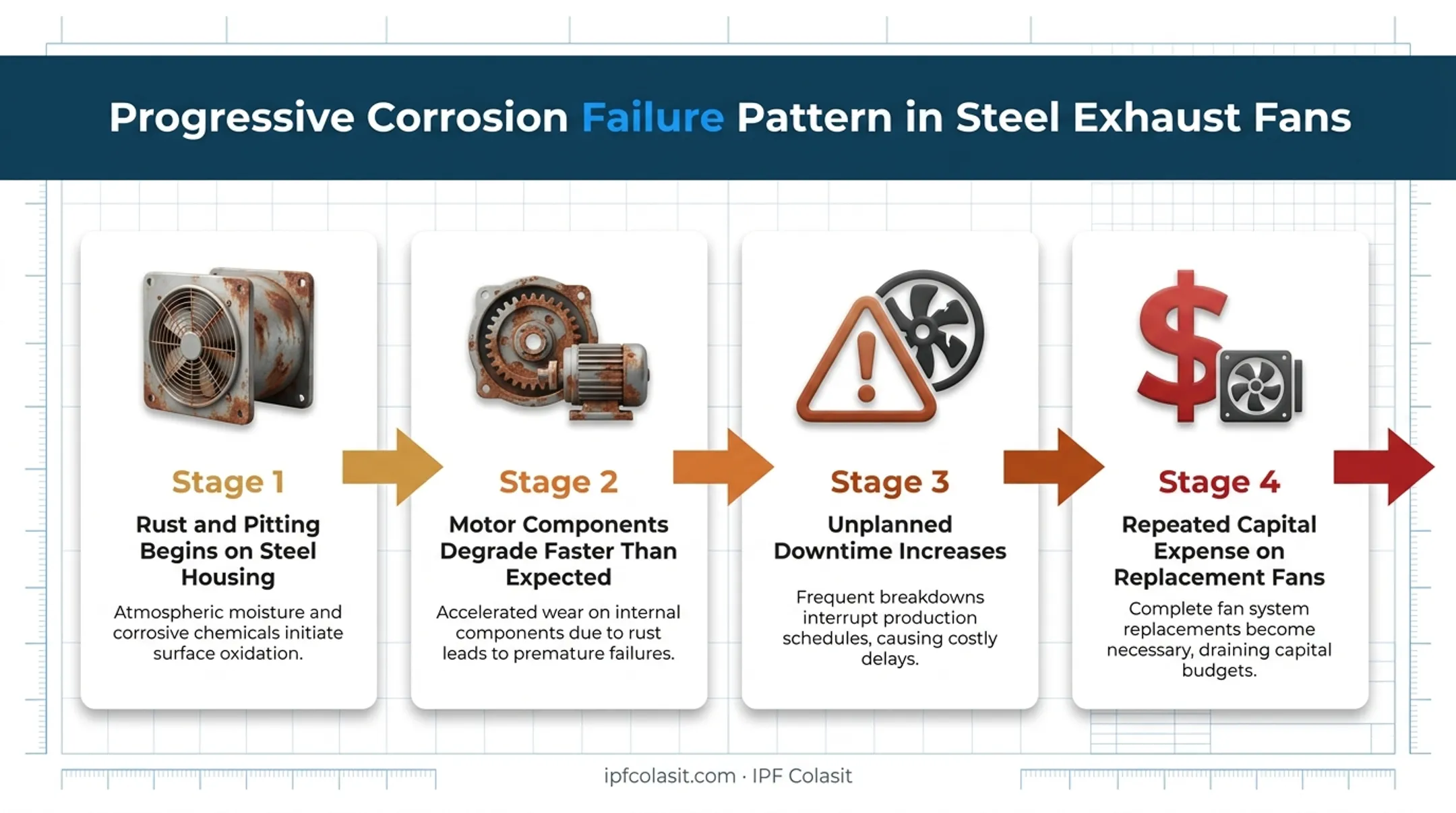

The pattern usually looks like this:
- Steel housing develops rust and pitting from acid fume exposure
- Motor components corrode faster than expected, even in upblast configurations
- Unplanned downtime increases as fans need emergency replacement
- Repeated capital expense on fans that should have lasted decades
The fix in these cases is usually the fan's material, not its orientation. A polypropylene or PVC upblast fan resists chemical attack through its full wall thickness rather than a surface coating, so corrosion stops at the source.
The takeaway: orientation solves the "where does contaminated air go" problem. Material solves the "what survives contact with the chemical" problem. Both need to be correct.
If your facility is exhausting harsh chemical gas streams and dealing with recurring corrosion failures, IPF Colasit's team can walk through material and configuration options suited to your specific process. Reach President Adam Carola directly at 1-800-891-3656 x32.
Conclusion
There's no universal "better" fan here. The right choice depends on whether your exhaust stream carries grease, chemicals, or moisture, or whether it's simply general stale air. Match the fan type to that reality first.
Once you've settled on upblast or downblast, weigh construction material with equal care. For corrosive fumes, steel versus PVC, polypropylene, or FRP matters as much as discharge direction. Getting both right cuts downtime, extends equipment life, and helps you avoid code violations and fire hazards.
Frequently Asked Questions
When should you use an upblast vs a downblast exhaust fan?
Use upblast fans for grease, smoke, or chemical-laden air where discharge needs to move up and away from the roof. Downblast fans are limited to general ventilation of clean, non-contaminated air.
What is the purpose of a downblast exhaust fan?
Downblast fans remove stale air, odors, and moisture in non-contaminated environments like offices and warehouses. They discharge downward toward the roof rather than venting upward and away.
Can a downblast fan be used for chemical exhaust?
No. Downblast fans are designed for clean-air applications and shouldn't handle corrosive or contaminant-heavy exhaust. Manufacturers don't rate these products for grease or chemical fume service.
Why does motor placement differ between upblast and downblast fans?
Upblast fans are commonly designed with the motor positioned out of the direct airstream, offering better protection. Downblast motor placement varies by drive type and model, so verify specifications rather than assuming.
Are corrosion-resistant exhaust fans available for both upblast and downblast designs?
Corrosion-resistant PVC, polypropylene, and FRP construction is most commonly engineered into upblast and in-line fan designs for chemical processing exhaust. Downblast options in these materials are limited.
How often should exhaust fans be inspected in corrosive environments?
Facilities handling acids or caustics should inspect fan housings and motors on a schedule matched to chemical concentration and exposure. Follow the manufacturer's guidance for corrosive service rather than general HVAC intervals.
