PVC 90 Degree Long Sweep Elbows

A long sweep 90 is used to redirect ductwork or piping through a 90-degree turn while maintaining a smoother path for the conveyed air or gas stream. In industrial ventilation, it can connect sections of ductwork around equipment, structures, or layout changes. Selection should account for the system design, connection method, size, and chemical environment.

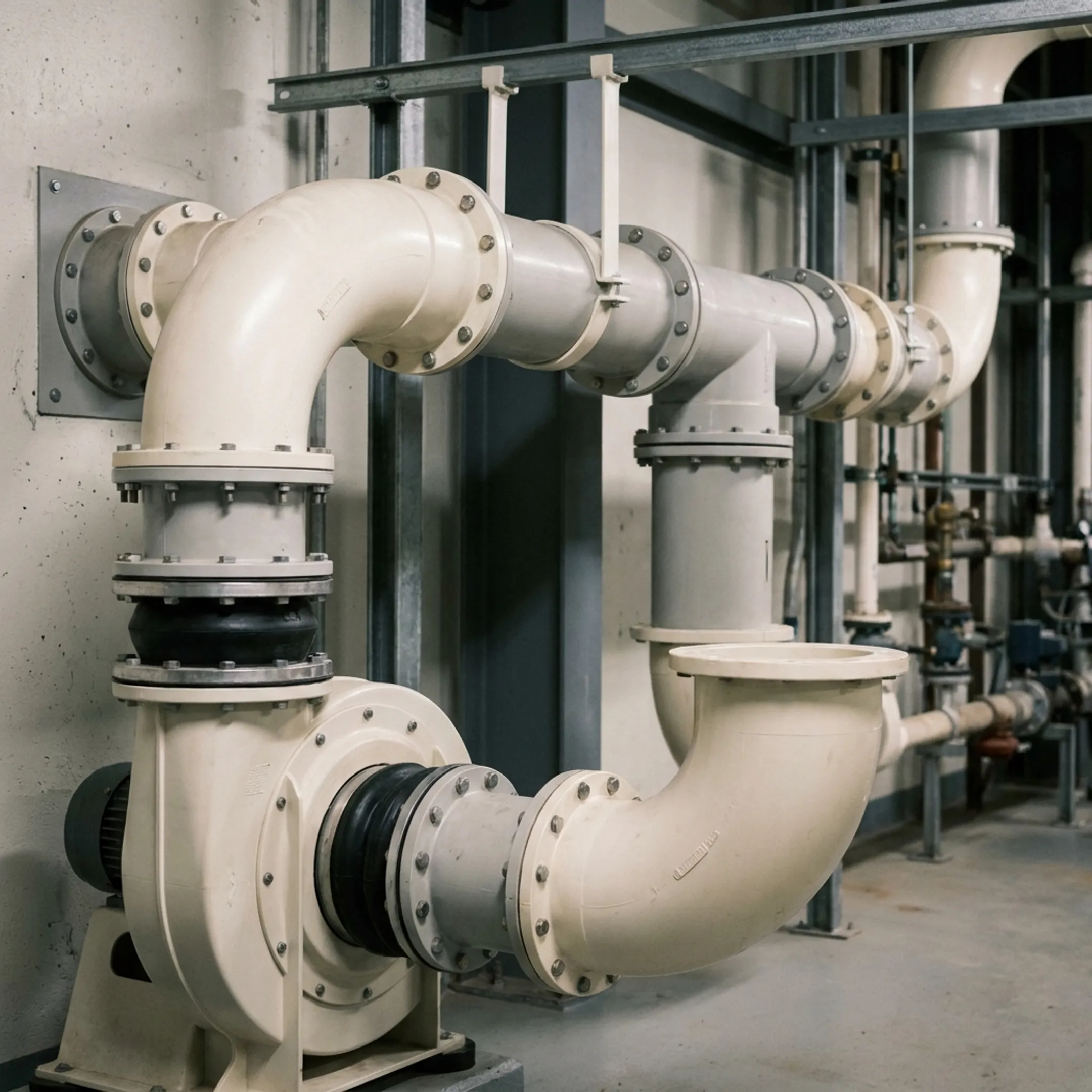

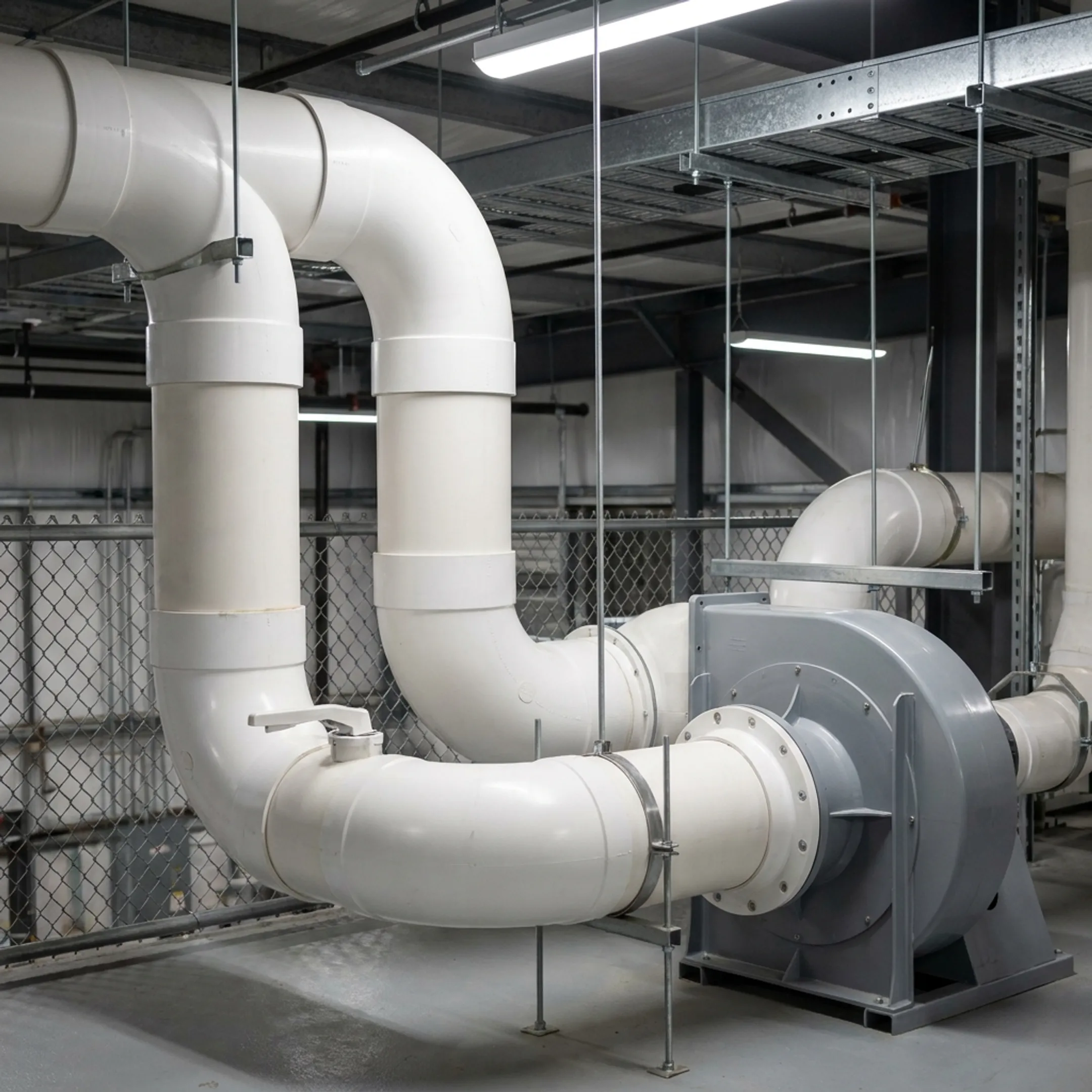

These elbows are used in ventilation system ductwork, plastic fan installations, and industrial air handling systems. They are particularly relevant where corrosion-resistant thermoplastic components are needed for harsh chemical-laden gas streams. The correct fitting depends on the surrounding ductwork, required configuration, connection type, and operating conditions of the ventilation system.

The product information identifies both PVC and CPVC as construction material options for the fitting range. The appropriate material should be selected according to the ventilation application, chemical exposure, operating conditions, and compatibility requirements. Confirm the required material and configuration with IPF Colasit when requesting a quote or preparing a system specification.

The product information lists socket end type connections for the PVC and CPVC fitting range. Socket connections are designed to join with compatible duct or fitting components using the specified installation method. Before ordering, confirm connection compatibility, dimensions, and the requirements of the existing or planned ventilation system.

The fitting range includes multiple size configurations from 4 inches to 24 inches. Availability for a particular PVC 90 Degree Long Sweep Elbow depends on the requested material, configuration, and system requirements. IPF Colasit also identifies custom size reducers as available upon request, so unusual transitions can be discussed during product selection.

Custom size reducers are identified as available upon request within the PVC and CPVC fitting range. Reducers can help transition between different duct sizes where a standard fitting does not match the system layout. Provide the required connection details, materials, and application information so IPF Colasit can review the appropriate configuration.
