With dozens of fitting types, schedules, and connection styles on the market, picking the wrong one causes leaks, pressure failures, or expensive rework down the line. This guide breaks down the main types of PVC fittings, how they differ, and how to select the right one for your specific job.
TL;DR
- Elbows, tees, couplings, unions, adapters, and caps cover most connect, redirect, branch, and terminate needs
- Select fittings by job (direction, branch, join, end) and by schedule (40 vs. 80) for wall thickness and pressure
- Match pipe size, pressure rating, connection type (slip vs. threaded), and the real application
- In industrial or chemical service, treat corrosion resistance as equal to fit, schedule, and connection type
What Are PVC Pipe Fittings and Connectors?
PVC fittings are molded components used to connect, redirect, branch, reduce, or seal sections of PVC pipe within a plumbing, process, or industrial system. Without them, a pipe run would be nothing more than a straight, dead-end tube.

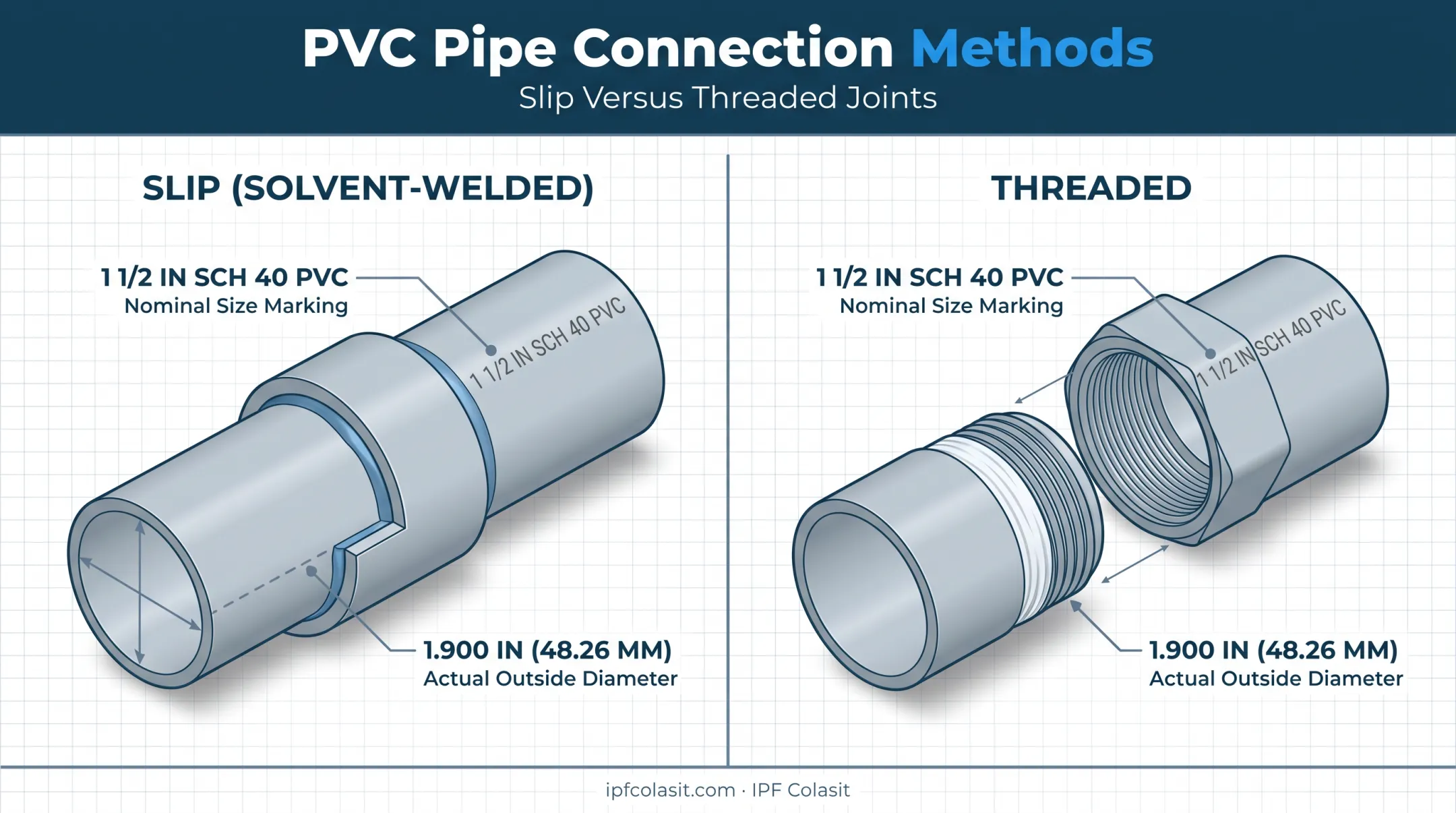

Fittings connect to pipe two ways:
- Slip (solvent-welded): Cement bonds pipe and fitting permanently
- Threaded: Male and female threads screw together, often sealed with tape or sealant
After joint type, size is the next rule that matters. Fitting size uses nominal dimensions tied to Iron Pipe Size (IPS) outside diameter, not the actual measured diameter. A "2-inch fitting" doesn't literally measure 2 inches anywhere on the part; it's sized to match a 2-inch nominal pipe.
This nominal system, defined under ASTM D2466 for Schedule 40 and ASTM D2467 for Schedule 80, keeps fittings interchangeable across manufacturers when everyone follows the same standard. That consistency is what lets straight pipe become a full run for potable water, wastewater, irrigation, or aggressive chemical streams.
Why the Right PVC Fitting Choice Matters
Using the wrong fitting type, schedule, or connection method causes leaks, pressure loss, or outright joint failure, especially under continuous or high-pressure flow. A fitting rated for residential drainage won't survive in an industrial process line running at elevated pressure and temperature.
Industrial and chemical processing environments carry added risk. Standard PVC can degrade under aggressive acids or caustics, and the failure mode isn't always dramatic.
IPEX's chemical resistance guide rates PVC compatibility as:
- R — resistant
- C — conditionally resistant
- N — not resistant
Even those ratings shift in the field. Temperature, concentration, exposure duration, and mechanical stress all change how PVC performs. A chemical rated "resistant" at room temperature can drop to conditional—or unsuitable—once temperatures climb.
Material selection can't stop at "is it PVC." Drawing on decades supplying PVC, polypropylene, and FRP components for harsh chemical-laden gas streams, IPF Colasit sees the same pattern: matching fitting and material to the application decides whether equipment lasts years or fails early.
Types of PVC Pipe Fittings
PVC fittings are grouped by function—direction change, branching, joining, terminating, or transitioning—and by schedule, which we'll cover separately below.
Elbows (Directional Fittings)
Elbows change pipe direction, typically at 45-degree or 90-degree angles. They come in slip, threaded, or street-elbow styles (one male end paired with a socket or thread).
- Best suited for: Routing pipe around corners, obstacles, or into tight mechanical spaces
- Key strength: Smooth turns minimize pressure drop and turbulence
- Limitation: Fixed angles mean complex routing may require multiple elbows, each one adding a joint
Tees and Wyes (Branching Fittings)
Tees split one line into two at 90 degrees; wyes do the same at 45 degrees. Unlike elbows, these fittings create new branch lines rather than just redirecting flow.
- Best suited for: Process exhaust branches, multi-outlet supply headers, and drain-waste-vent (DWV) lines
- Key strength: Wyes smooth branch flow and cut clog or turbulence risk versus hard 90-degree tees
- Limitation: Each branch adds complexity and another potential leak point
Couplings and Unions (Joining Fittings)
Couplings permanently join two straight pipe sections. Unions also join pipe but allow disconnection later via a center ring, no cutting required.
- Best suited for: Couplings for new runs or repairs; unions where maintenance access matters (near filters or valves)
- Key strength: Couplings are simple and low-cost; unions allow easy disassembly
- Limitation: Couplings can't be undone without cutting the pipe; unions cost more and add a failure point
Adapters, Bushings, and Reducers (Transition Fittings)
These fittings bridge mismatches. Adapters change end type (threaded to slip) or bridge different materials; bushings and reducers step down pipe or fitting diameter.
- Best suited for: Connecting PVC to metal, or stepping between different diameters in the same system
- Key strength: Highly versatile for mixed-material or irregular systems
- Limitation: An undersized reducer or bushing can become the weakest link in a pressurized system if its rating isn't confirmed against the full run
Caps, Plugs, and Flanges (Terminating & Support Fittings)
Caps and plugs seal a pipe's end. Flanges bolt pipe to equipment or add structural support at connection points.
- Best suited for: Sealing unused lines (caps and plugs), or connecting piping to tanks, pumps, and industrial equipment (flanges)
- Key strength: Flanges add strength and allow bolted, serviceable connections for heavy-duty setups
- Limitation: Flanges typically come in Schedule 80 only and add cost and bulk compared to simple slip fittings

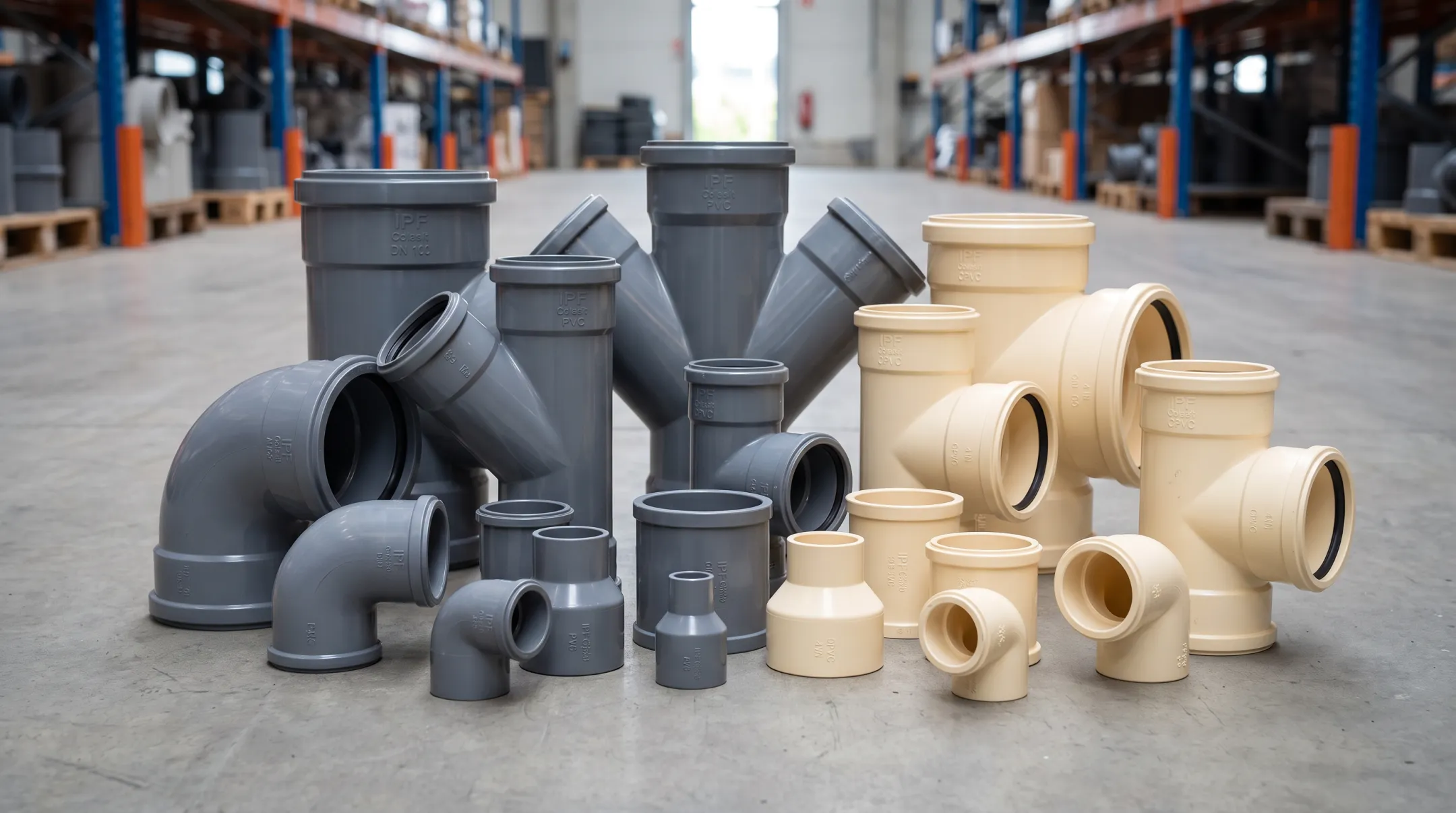

IPF Colasit's PVC and CPVC fitting line follows this same functional breakdown. The lineup includes 45-degree and 90-degree elbows, wyes, tees, reducers, and couplings in socket-end connections from 4 to 24 inches. Custom-size reducers are available for irregular ductwork runs.

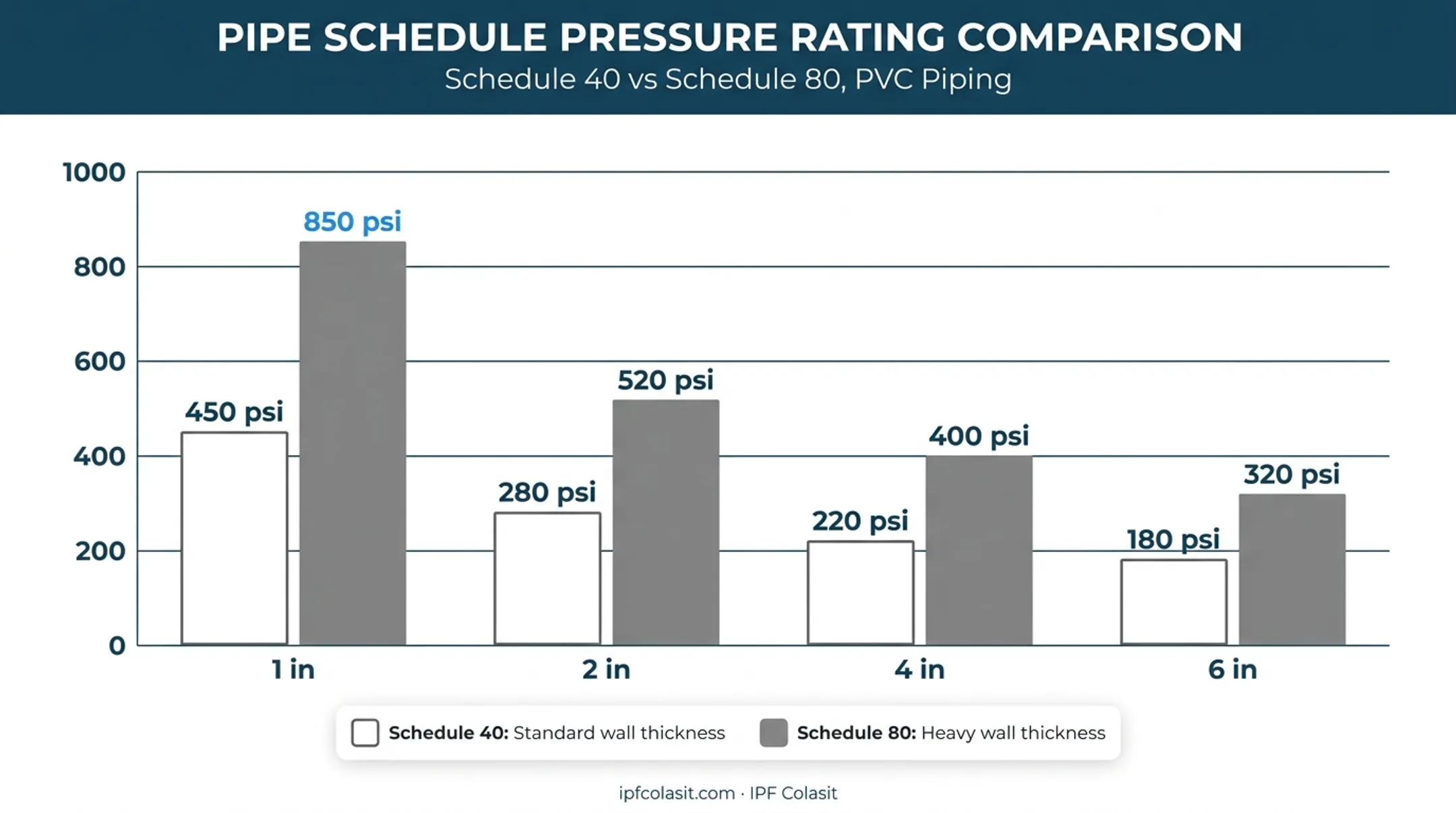

Schedule 40 vs. Schedule 80: Choosing by Pressure Rating
Schedule 40 PVC (typically white) is the standard for residential drainage and irrigation. Schedule 80 (typically gray) has thicker walls built for higher-pressure and industrial service.
Pressure capacity drops as diameter increases. Spears' pipe tables at 73°F show the gap clearly:
| Nominal Size | Schedule 40 (psi) | Schedule 80 (psi) |
|---|---|---|
| 1 in | 450 | 630 |
| 2 in | 280 | 400 |
| 4 in | 220 | 320 |
| 6 in | 180 | 280 |
Fittings must match the pipe schedule for correct pressure handling, though the nominal sizing system keeps them dimensionally compatible across schedules. Don't assume color tells you the schedule. Some manufacturers produce gray Schedule 40 product, so verify the actual specification, not the visual appearance.
Pressure rating is only half the decision. Chemically aggressive gas and liquid streams push even Schedule 80 past its practical limits.
Threading alone can cut a Schedule 80 pipe's pressure rating roughly in half, according to IPEX's technical documentation. In those cases, polypropylene becomes the better choice: it resists attack through the full wall thickness instead of relying on a surface coating that fails once chipped. IPF Colasit supplies polypropylene fans, blowers, and fittings built for that kind of chemical service.

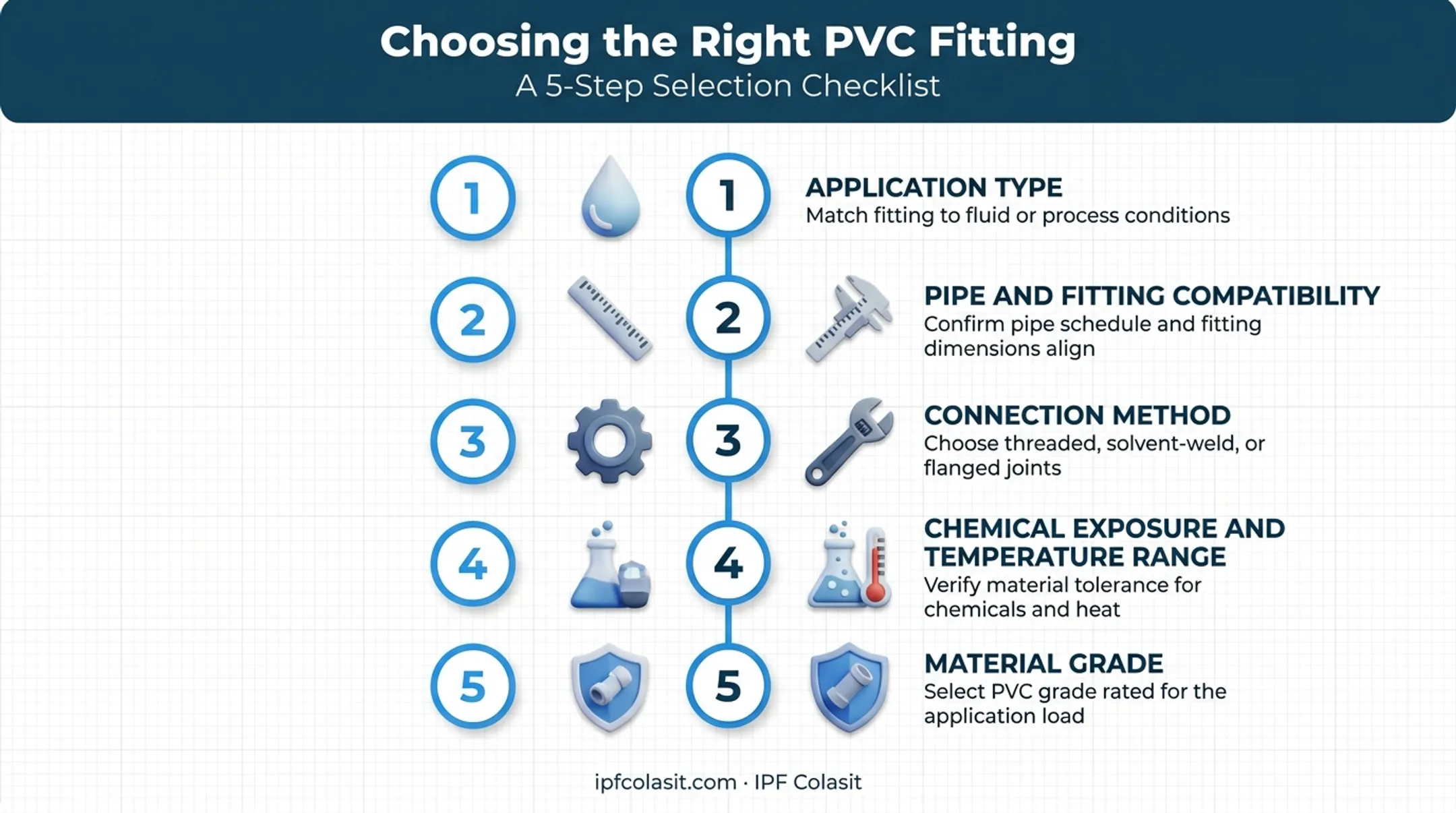

How to Choose the Right PVC Fitting or Connector
Work through these factors before finalizing any fitting order:
- Application type – Match the fitting class to pressure water supply, gravity drainage/DWV, irrigation, or industrial chemical transport
- Pipe and fitting compatibility – Confirm nominal size and schedule match between pipe and fitting
- Connection method – Choose permanent solvent-welded slip joints or serviceable threaded or union connections
- Chemical exposure and temperature range – Match the fitting material to the fluid or gas stream conditions
- Material grade – Decide whether standard PVC is enough or a more corrosion-resistant thermoplastic is needed for harsh environments
What to Check Before Finalizing Your Fitting Selection
A few final checks prevent expensive mistakes:
- Never mix pipe and fitting schedules without confirming pressure compatibility across the full assembly
- Verify chemical compatibility on a PVC resistance chart for the specific chemical, concentration, and temperature—not a generic "PVC resists acids" claim
- Confirm installation method in project planning: primer and cement for slip joints; PTFE tape or PVC-compatible sealant for threads
- Don't select on price alone—a cheaper fitting that fails in three years costs more than one specified for two decades of corrosion service
Conclusion
PVC fittings and connectors each serve a distinct role, from redirecting and branching flow to joining pipe sections and terminating lines. Matching fitting type, schedule, and material to the specific application is what prevents leaks, failures, and costly downtime.
For industrial facilities handling harsh chemical streams, a supplier experienced in corrosion-resistant thermoplastics helps you specify fittings that hold up for decades instead of failing every few years.
IPF Colasit offers PVC and CPVC fittings, including elbows, wyes, tees, reducers, and couplings, in sizes from 4 to 24 inches with socket-end connections. Custom-size reducers and drawings are available on request through the quote process. Contact the team at adamc@ipfcolasit.com or 1-800-891-3656 ext. 32 to match fitting and material to your gas stream.
Frequently Asked Questions
What are the different types of PVC fittings?
Main categories include elbows (directional), tees and wyes (branching), couplings and unions (joining), adapters, bushings, and reducers (transitioning), plus caps, plugs, and flanges (terminating and support).
How do I choose the right PVC adapter?
Match the thread type (male or female), end style (slip or threaded), and pipe size against the adapter's rated connections. Confirm the adapter's pressure rating fits your system's operating conditions.
What are the different ways to connect PVC pipes?
Solvent welding uses primer and cement to permanently bond slip fittings to pipe. Threaded connections screw together and get sealed with PTFE tape or a PVC-compatible sealant, never both at once.
Which PVC fittings can handle the highest pressure?
Schedule 80 fittings, especially flanged and threaded types, handle higher pressures than Schedule 40. Keep in mind threading itself can cut a fitting's rated pressure significantly, so check manufacturer tables rather than assuming.
What is the strongest type of PVC?
Schedule 80 PVC has thicker walls than Schedule 40, giving it greater strength and pressure tolerance at the same nominal size. It's the standard choice for higher-pressure or industrial applications.
What is an adapter for PVC pipe?
An adapter is a fitting used to transition between different end types, thread types, or materials, such as connecting a threaded valve to slip-fit pipe or bridging PVC to metal piping.
