Industrial Dust Collector Fans

CRDV fans are available in polypropylene and PPs-EL, a spark-resistant polypropylene material. These thermoplastic options are intended for demanding industrial environments where corrosion resistance is important. The design keeps metal out of the airstream except for the stainless steel motor mount and support sets, helping address corrosive gas-stream requirements.

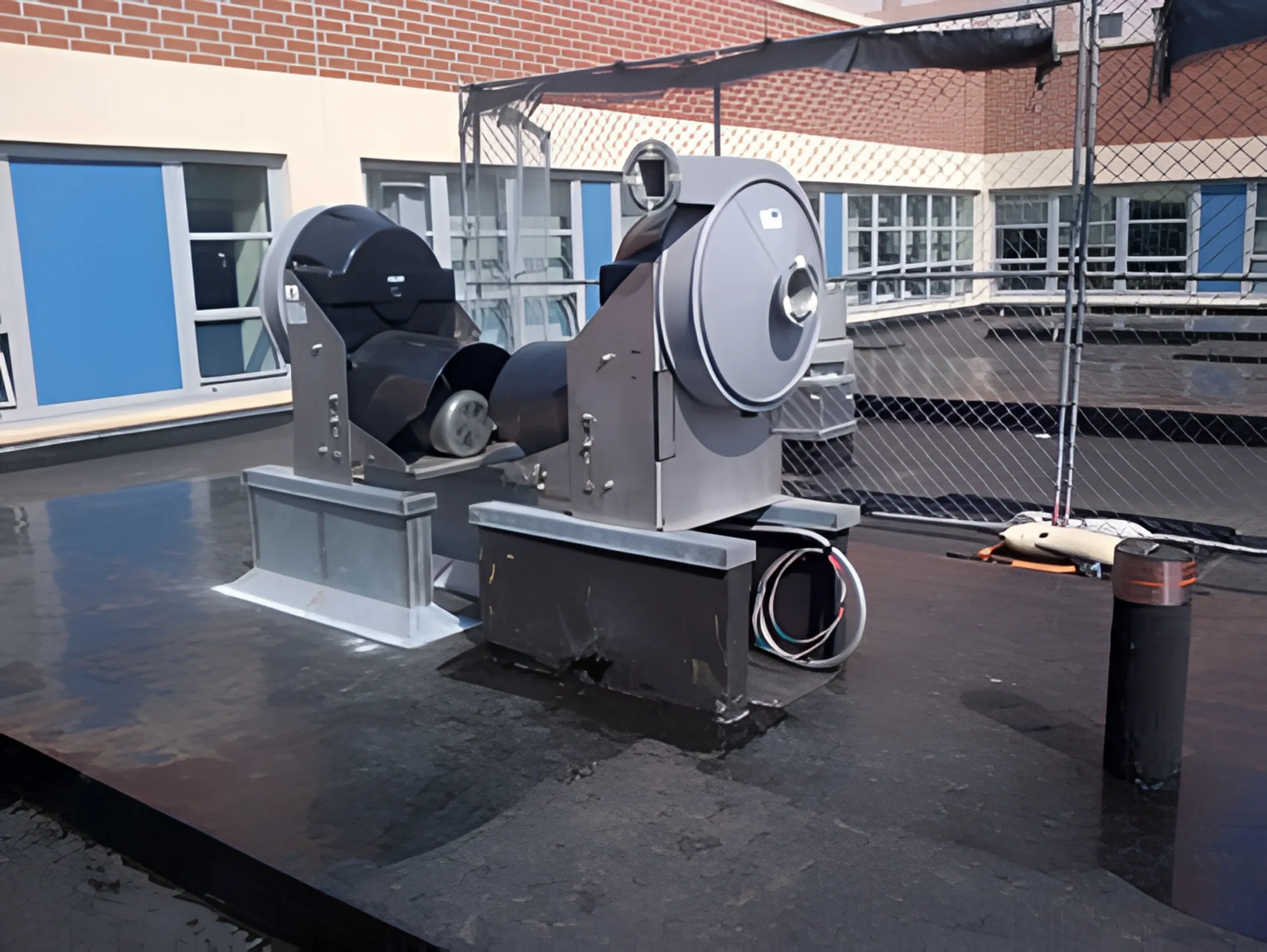

CRDV fans can be configured for vertical in-line or roof-mounted installation and can also support horizontal in-duct mounting. Roof covers and flexible connectors are available. The appropriate arrangement depends on the ductwork, discharge location, available space, and system design requirements.

The CRDV range is listed with airflow capacity from 50,000 to 125,000 CFM. Actual operating performance depends on the selected configuration, system resistance, static pressure, ductwork, and motor arrangement. IPF Colasit can help match the fan selection to the required airflow and ventilation conditions.

CRDV fans are listed as capable of handling up to 24 inches of static pressure. The required operating point should be evaluated against the complete system curve, including filters, ductwork, fittings, dampers, and other equipment. Confirming the duty point before selection supports reliable performance in dust collection and industrial ventilation systems.

Yes. CRDV fans use polypropylene or spark-resistant PPs-EL construction for applications involving corrosive environments and chemical processing. Polypropylene is chemically inert across most of the pH range and resists acid and caustic attack. The correct material should be selected after reviewing the specific chemistry, temperature, and gas-stream conditions.

Key considerations include required airflow, static pressure, gas-stream chemistry, application environment, mounting orientation, spark sensitivity, and available ductwork space. Buyers should also review impeller design, motor support construction, maintenance access, and system accessories such as roof covers or flexible connectors. IPF Colasit provides guidance on product selection and pricing.
