Belt Drive Centrifugal Blowers

Yes, in a belt drive system, the blower motor is separate from the fan and connected via a belt and pulley system. The motor's rotational energy is transferred through the belt to spin the fan's impeller. This contrasts with direct drive models, where the impeller is mounted directly onto the motor shaft for a fixed-speed operation.

Proper belt tension is crucial for performance and longevity. A general rule is that the belt should have about one inch of deflection for every foot of distance between the pulley centers when moderate thumb pressure is applied. Over-tightening can strain motor bearings and shorten belt life, while a loose belt can slip, reducing efficiency and causing noise. Always consult the manufacturer's specific guidelines.

Efficiency depends on the application. Direct drive blowers are often more energy-efficient as there are no frictional losses from belts. However, belt drive blowers offer superior operational flexibility, allowing speed adjustments to precisely match system requirements, which can lead to greater overall system efficiency. They also protect the motor from heat and corrosive fumes, extending its life in harsh environments.

The two primary types of blower drives are belt drive and direct drive. In a belt drive system, the motor is connected to the fan via belts and pulleys, allowing for variable speed. In a direct drive system, the fan impeller is mounted directly on the motor shaft, resulting in a fixed fan speed that matches the motor's speed. Each type offers distinct advantages depending on the application's needs.

A belt-driven fan works by transferring power from an external motor to the fan's impeller using a belt and pulley system. The motor turns a drive pulley, which moves the belt, and the belt in turn rotates a driven pulley attached to the fan shaft. This rotation spins the impeller, creating airflow. By changing the size of the pulleys, the operator can adjust the impeller speed independently of the motor speed.

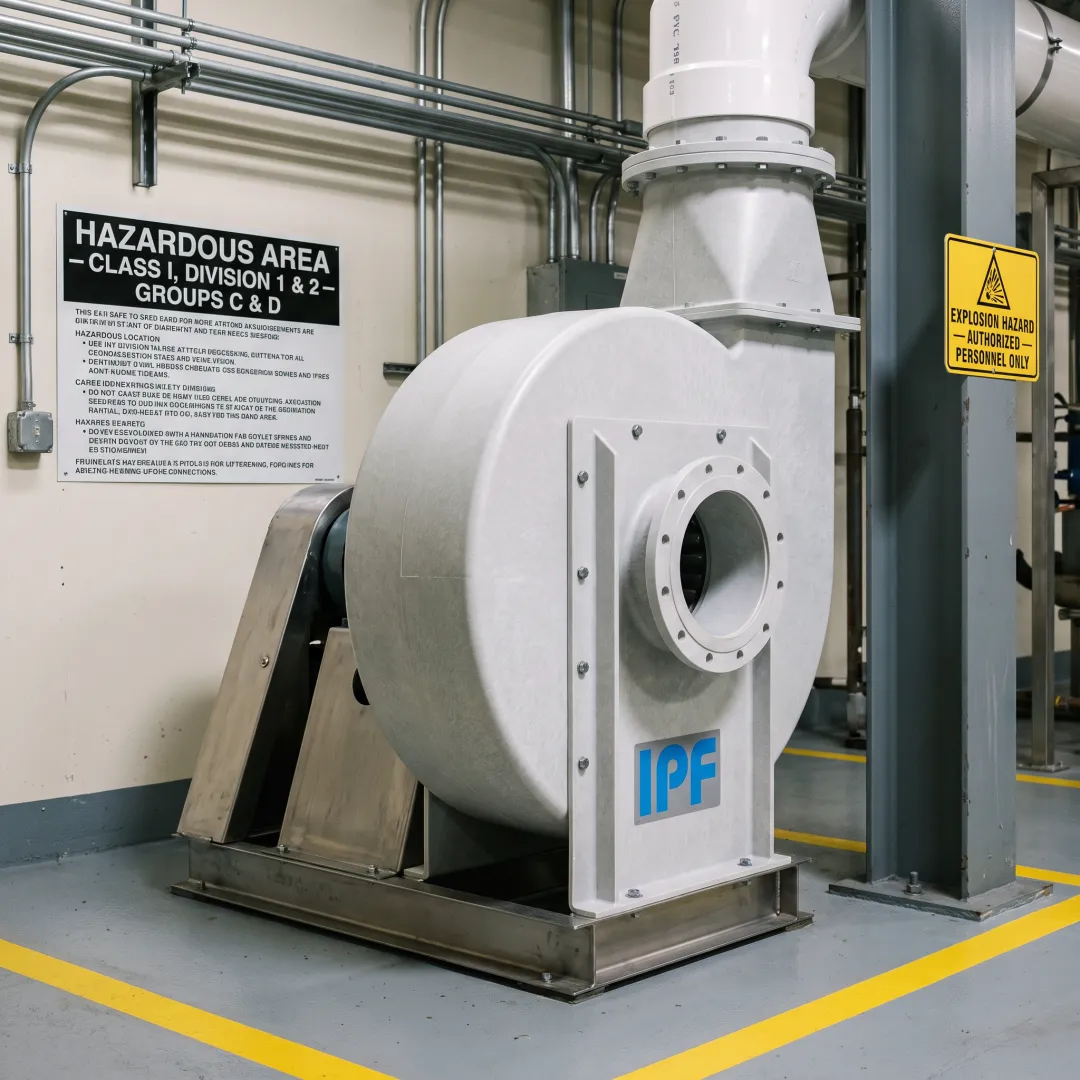

Our belt drive blowers are constructed from high-grade, corrosion-resistant thermoplastics like PVC (Polyvinyl Chloride) and Polypropylene. For environments with explosion risks, we also offer spark-resistant PPs-EL material. This all-plastic construction ensures no metal parts contact the airstream, providing a long service life of over 25 years even when handling harsh, corrosive chemical fumes and gases.
